Electromagnetic Yoke
The SKY-10 is the new generation and most advanced electromagnetic yoke of this company. It is a light weight, ergonomically designed yoke that improve job performance by reducing operator arm and wrist fatigue specially at hard positions.
This yoke is designed specifically for non-destructive testing (NDT) of magnetic material, known as Magnetic Particle Inspection (MPI). The SKY-10 uses a standard AC mains supply of either 230V, 115V or 48V depending on customer specification.
Types
| Electromagnetic Yoke – SKY10 | ||||
|---|---|---|---|---|
|
Model |
SKY10-A |
SKY10-B |
SKY10-C |
|
|
Voltage (Volt – AC)
|
230
|
115
|
48
|
|
|
Part Number
|
SKY102301
|
SKY101151
|
SKY104801
|
|
|
Frequency (Hz)
|
50/60
|
50/60
|
50/60
|
|
|
Current in air – Max (A)
|
1.8 |
3.7 |
7.8 |
|
|
Current – Max (A)
|
1.3 |
2.6 |
4.8 |
|
|
Lifting weight (Kg)
|
> 9
|
> 9
|
> 7 |
|
|
Weight (Kg)
|
2.1 |
2.1 |
2.1 |
|
|
Dimensions (mm)
|
233 x 200 x 54
|
233 x 200 x 54
|
233 x 200 x 54
|
|
|
Leg Span (mm)
|
50 – 270
|
50 – 270
|
50 – 270
|
|
|
Recommended Leg Span (mm)
|
162 |
162 |
162 |
|
|
Cord Length (m)
|
3.1 |
3.1 |
3.1 |
|
|
Duty Cycle (ratio of “ON” to “total” time) |
50%
|
50%
|
50%
|
|
|
Maximum current “ON” time (Sec.)
|
90 |
90 |
90 |
|
|
Tangential Field Strength (kA/m) |
≥ 2
|
≥ 2
|
≥ 2
|
|
Features
• Light weight and unique ergonomic design
• Automatic thermal cut-out to prevent burnouts from misuse
• Slim comfortable handle
• Exceeds ASTM lifting requirement
• Low vibration and noise
• Chemical resistant
• Articulated, double-jointed legs
• Individual serial number on each Yoke
• Demagnetizing capability
• Stainless steel sheets for leg protection
• Oil resistant power cord
• Replaceable feet and leg sections
SPECIFICATIONS
• ASTM E709
• ASTM E1444
• ASME Sec. V, Art. 7
• EN-ISO 9934-3
• MIL-STD-271
Applications
• Inspection of welds
• Spot inspections
• In-service inspections
• Field testing
• Difficult access area
Parts

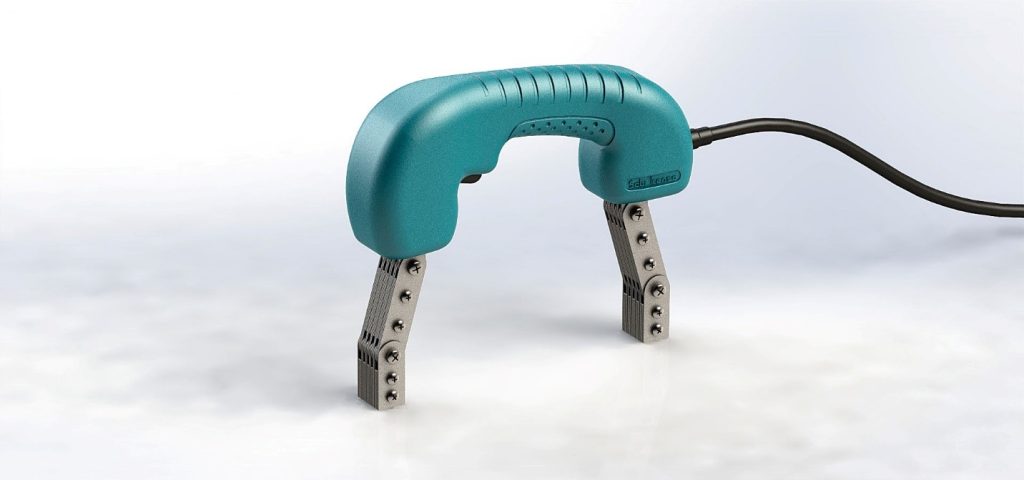

Electromagnetic Yoke - SKY 10
Light weight and unique ergonomic design Yoke

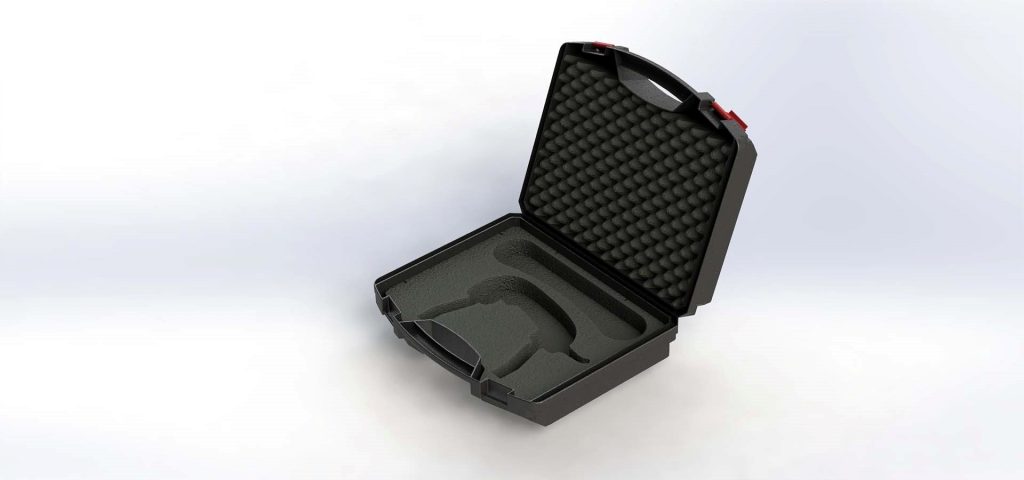

Carrying Case – CCY44
Hard Plastic case to carry the yoke easily and safely
